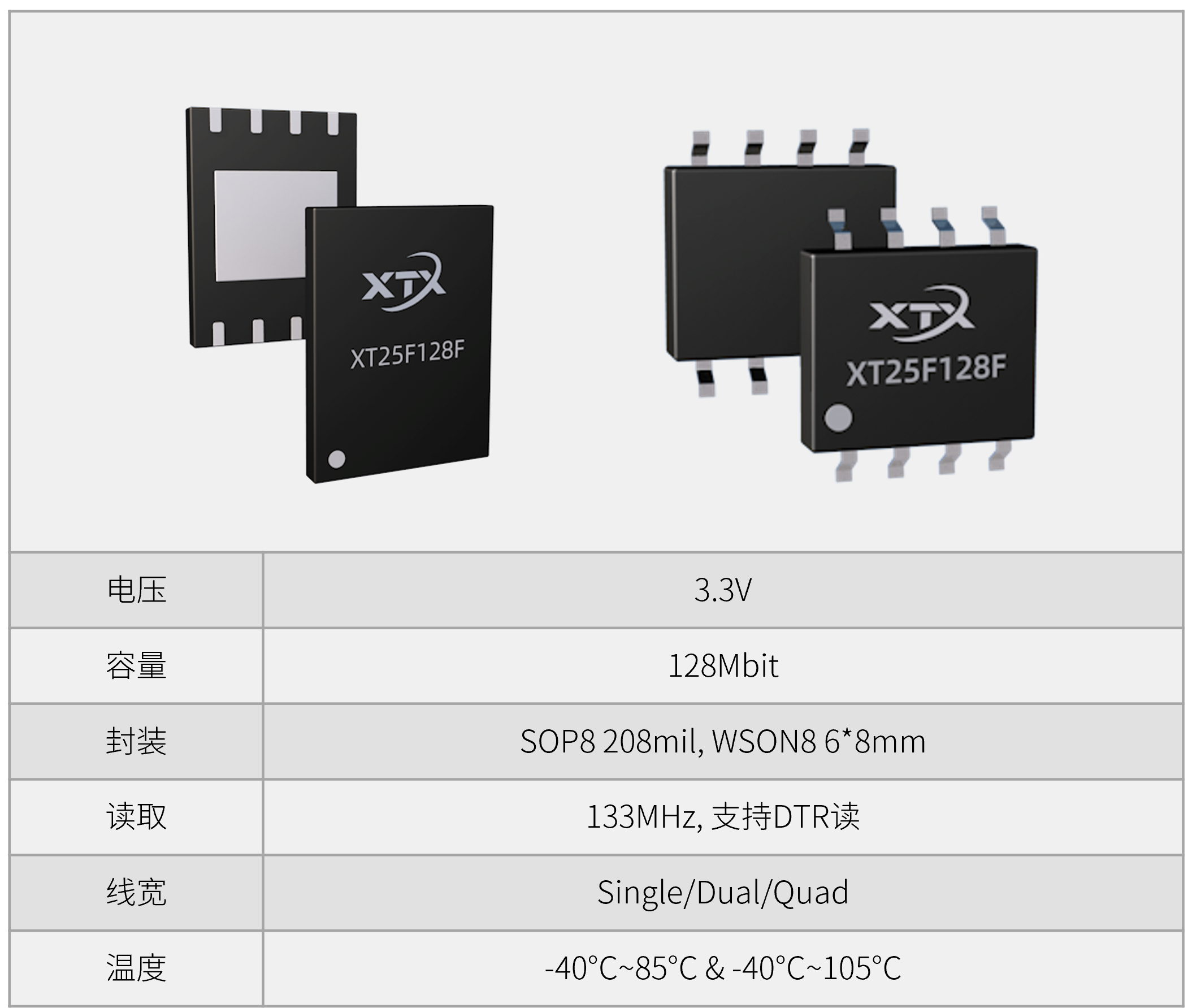

Introducing now! The XTX high-performance 3.3V 128Mb SPI NOR Flash XT25F128F series, utilizing a 55nm ETOX process, offers faster read and write speeds and lower power consumption.
重磅来袭！芯天下高性能 3.3V 128Mb SPI NOR Flash XT25F128F系列采用55nm ETOX工艺，新产品读写速度更快，产品功耗更小。
Ultra-fast read speed
Supports single-line, dual-line, and quad-line reading with a read speed of up to 133MHz and a quad-line command transfer rate of up to 532Mbits/s. In DTR mode, the read speed reaches 104MHz, and the quad-line DTR command transfer rate is up to 832Mbits/s, significantly enhancing system access speed.
Improved programming and system operation efficiency
Page Programming time is 0.4ms, improving programming efficiency. Sector Erase time is 40ms, 32KB Block Erase time is 0.15s, and 64KB Block Erase time is 0.25s. Full chip erase time is 30s. Writing to the Status Register takes only 1ms, saving significant time during frequent area protection and de-protection operations, as well as switching between single, dual, and quad lines, thereby enhancing system operation efficiency.
*The above data represents typical values.
Ultra-low power consumption
In Deep Power Down mode, the current is typically 0.5uA, making it suitable for applications sensitive to power consumption that require long standby times, such as wearable devices.
Additional feature highlights
1. Supports flexible adjustment of I/O drive capability, adapting to more hardware design scenarios.
2. Supports advanced independent sector/block protection (Advanced Sector/Block Protection) for more precise data protection.
XTX Technology Co., Ltd. is a high-tech enterprise specializing in the research, development, and sales of code-type flash memory chips, offering a wide range of code-type flash memory chips from 1Mbit to 8Gbit. It is one of the industry's leading manufacturers with a comprehensive product range of code-type flash memory chips. The newly launched high-performance 55nm 3.3V 128Mb SPI NOR XT25F128F series products are widely used in smart wearables, industrial medical equipment, intelligent security, network communication, computer peripherals, and other fields.
超快读速度
支持单线/双线/四线读取，读取速度达到133MHz，四线指令传输速率高达532Mbits/s。 DTR 模式下读取速度达到104MHz，四线DTR指令传输速率高达832Mbits/s，极大提升系统访问速度。
提升烧录和系统运行效率
页编程（Page Program）时间为0.4ms，提升烧录效率。
扇区擦除（Sector Erase）时间为40ms，32KB块擦除（Block Erase）时间为0.15s，64KB块擦除（Block Erase）时间为0.25s。全片擦除（Chip Erase）时间为30s。
写状态寄存器（Write Status Register）仅需1ms，在频繁设置区域保护与解保护、切换单双四线等操作时节省大量时间，提升系统运行效率。
*以上数据为典型值
超低功耗
XT25F128F在Deep Power Down 模式下，电流典型值为0.5uA，适配对功耗敏感、需长时间待机的穿戴等便携式应用。
更多功能亮点
1. 支持I/O驱动能力的灵活调整，适配更多应用场景的硬件设计。
2. 支持先进的独立扇区/块保护（Advanced Sector/Block Protection），对数据进行更精准的保护。
芯天下技术股份有限公司是一家专业从事代码型闪存芯片研发、设计和销售的高新技术企业，提供从1Mbit-8Gbit宽容量范围的代码型闪存芯片，是业内代码型闪存芯片产品覆盖范围较全面的厂商之一。本次芯天下推出的高性能55nm 3.3V 128Mb SPI NOR XT25F128F系列产品广泛应用到智能穿戴、工业医疗、智能安防、网络通讯、电脑周边等领域。
