With the rise of 5G and AIoT, various IoT applications driven by 5G technology, such as new infrastructure, industry, automotive markets, PC/NB BIOS, and AI-powered smart cities, are continuously expanding, significantly increasing the complexity of code. As a result, the market size for high-capacity NOR Flash, which ensures data security and reliability through code storage, is rapidly growing.

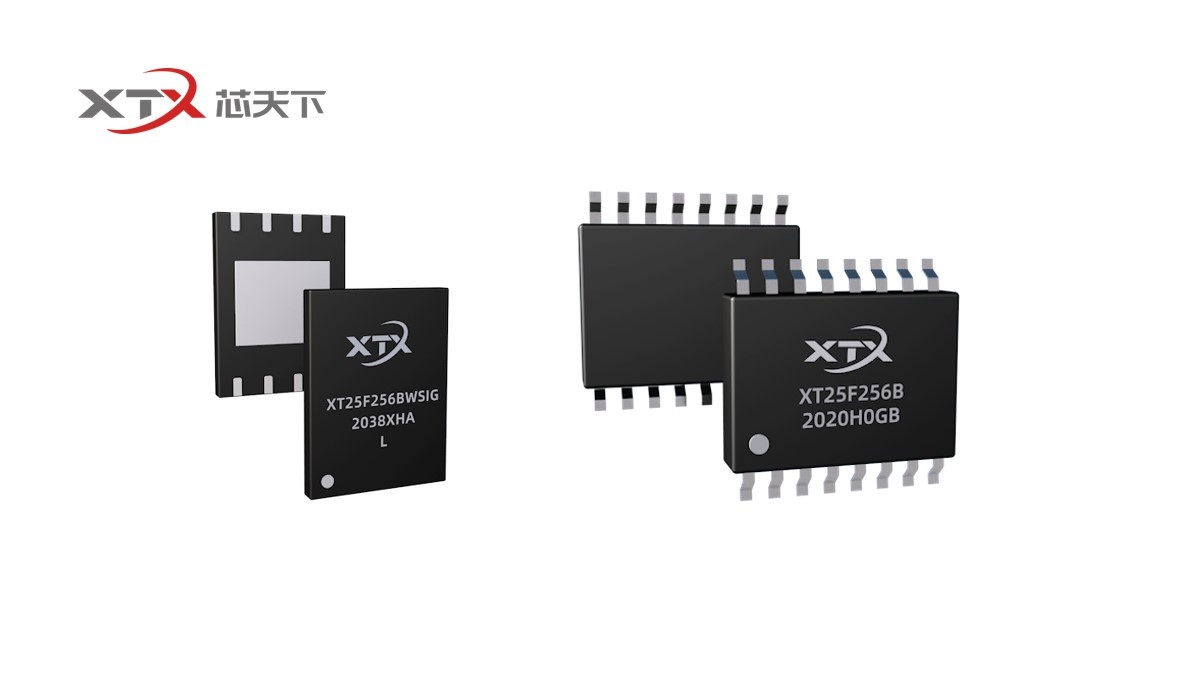

Domestic code-type storage is making continuous breakthroughs with frequent good news. Recently, XTX proudly launched its high-capacity, high-performance, and highly reliable 3.3V 256Mbit XT25F/BF256B series products. These products, manufactured using mature processes, feature fast read speeds, code execution capability, and high reliability, making them an ideal choice for storing system code and application data.
随着5G+AIoT的兴起，5G技术引领的新基建、工业、车载市场、PC/NB BIOS以及AI助力智慧城市等各类IoT应用不断扩展，代码的复杂性也显著加大。作为保证数据安全性和可靠性的代码式存储，大容量NOR Flash的市场规模也因此快速增长。
Product Features 产品特性
I. High Capacity: 256Mbit capacity;
supports SPI Single/Dual/Quad I/O;
supports DTR with data read rates up to 120MHz.
II. High Performance:
Chip Erase time typically 70 seconds;
Page Program time typically 0.25 milliseconds;
Sector Erase time typically 40 milliseconds;
Block Erase time typically 0.22 seconds.
III. Low Power Consumption:
Sleep mode current typically 1 microampere;
standby current typically 15 microamperes;
read operation current typically
6 milliamperes at 48MHz,
8 milliamperes at 80MHz,
10 milliamperes at 108MHz.
IV. High Reliability: Supports 100,000 erase/write cycles.
V.Supports XIP (Execute-In-Place).
VI.Supports industrial temperature range: -40°C to +85°C.
I. Has received reference design recommendations from multiple major chip manufacturers;
II. wide application coverage: smart security, dash cams, smart electricity meters, smart routers, PC/NB BIOS, set-top boxes, PTN equipment, micro base stations, etc.
1.已获得多家主芯片厂家参考设计推荐；
Supply information
The 3.3V XT25F256B/XT25BF256B series products are now fully in mass production. For samples, please contact XTX Technology sales representatives or authorized distributors for relevant ordering information.
Contact
For on-site support and inquiries: fae@xtxtech.com
For sales support and inquiries: sales@xtxtech.com
For more product information: www.xtxtech.com
